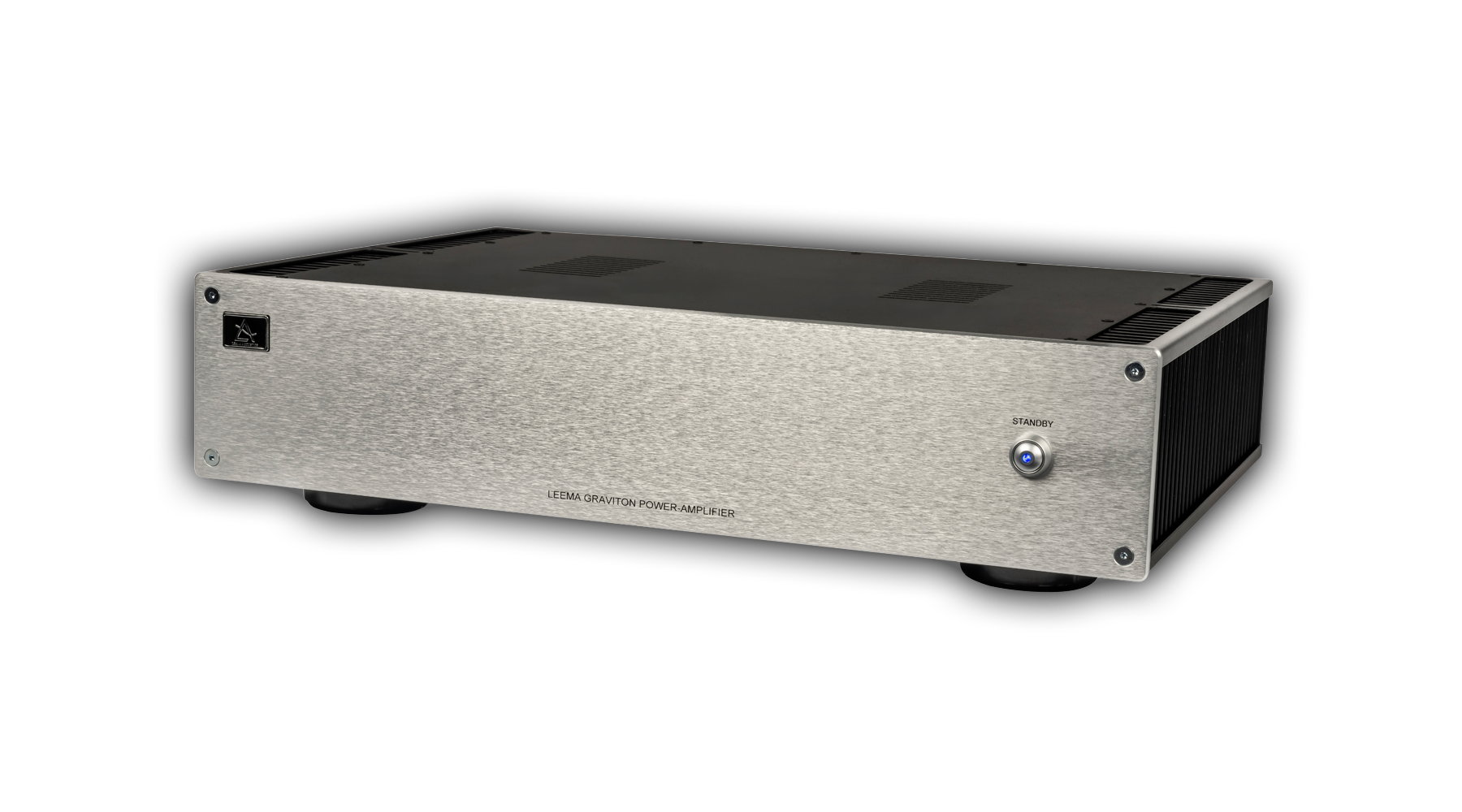

Graviton power amp
The Graviton is a real powerhouse backed up by possibly the biggest toroidal power supply ever seen at this price point allowing for the ability to drive / control any loudspeaker, leaving the choice of partnering loudspeaker wide open
Whilst the headline power from this all analogue design is staggering the magic is found in the fractions of Watts (detail) natural unforced detail without a hint of artificial brightness or exaggerated S-S-S sibilance…
Hugely dynamic and effortlessly detailed are the calling cards of this Class A/B power amp design.
Specifications
Frequency response
20Hz – 20kHz -.3db and @ 100kHz – 3dB
Power output
150w 8ohm load, 265w 4 ohm load per channel
Distortion (20Hz-20kHz)
0.01% THD 8 ohm load
Output impedance
20Hz 0.038 ohms
Sensitivity
0dB = 155mV / full output 2.0v

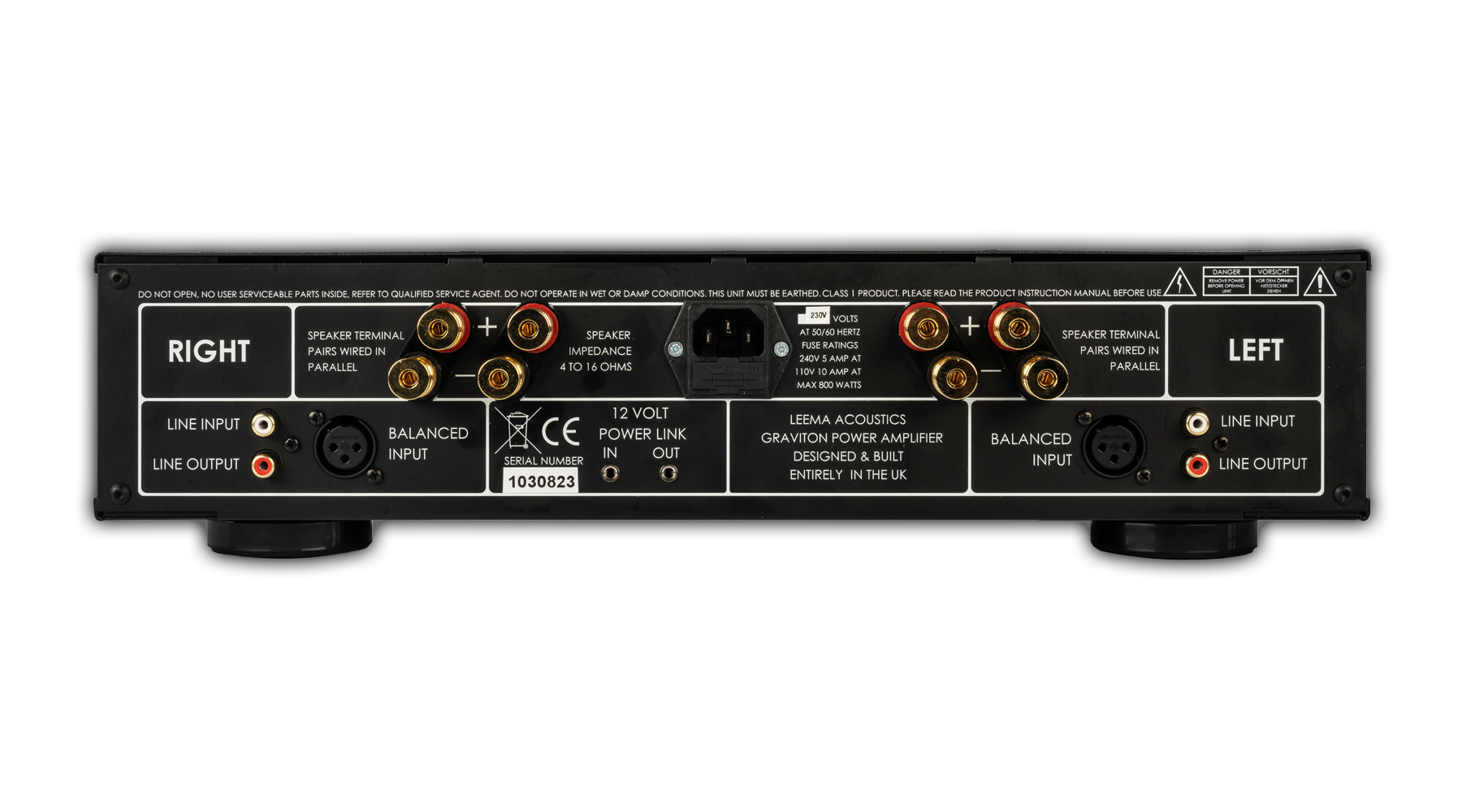

Single ended RCA inputs
1 per channel
Balanced XLR inputs
1 per channel
12V trigger
Yes
Power consumption
Switched on at idle = 53 watts / Full rated output = 475 watts
Dimensions
440x109x325mm
Weight
16kg
