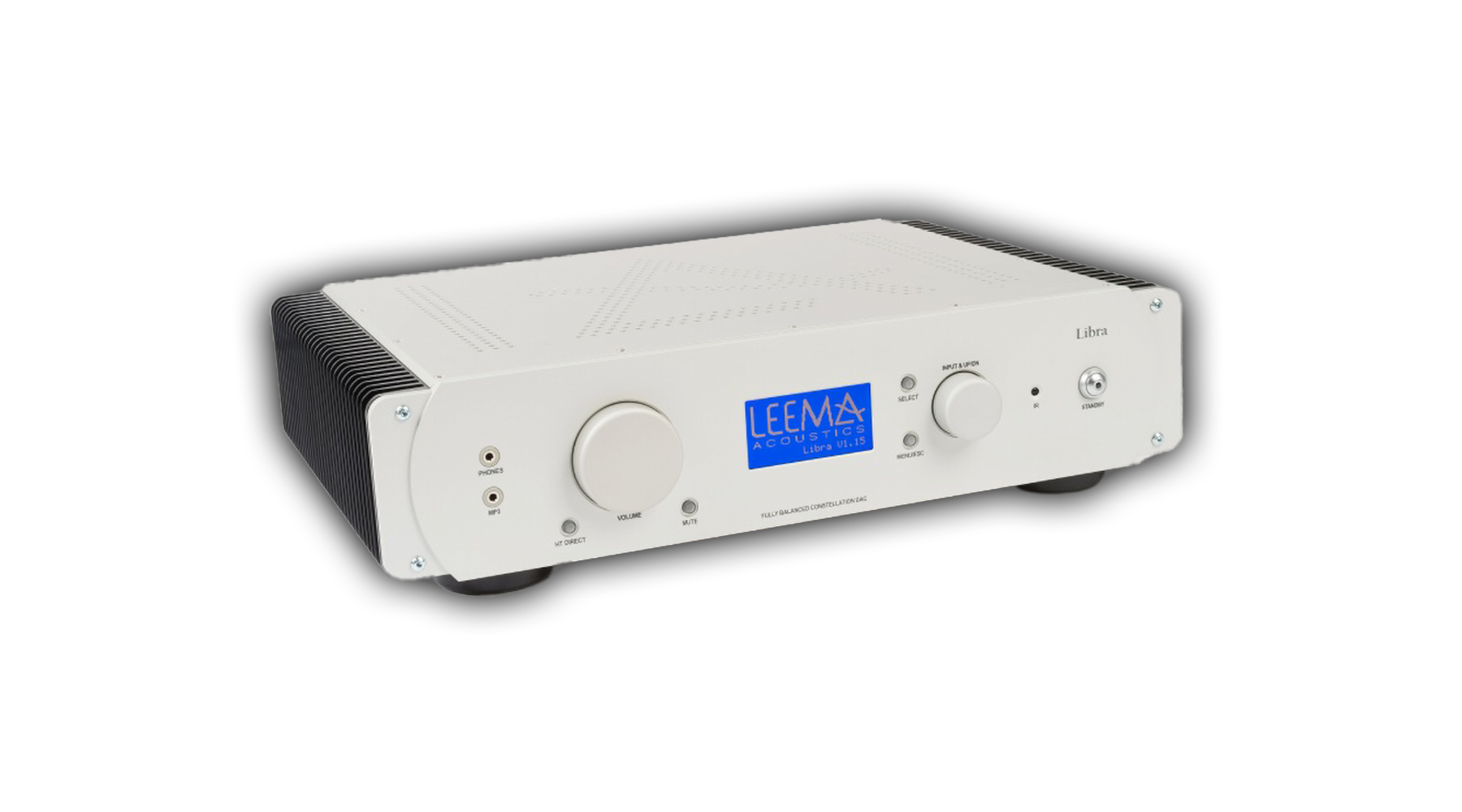

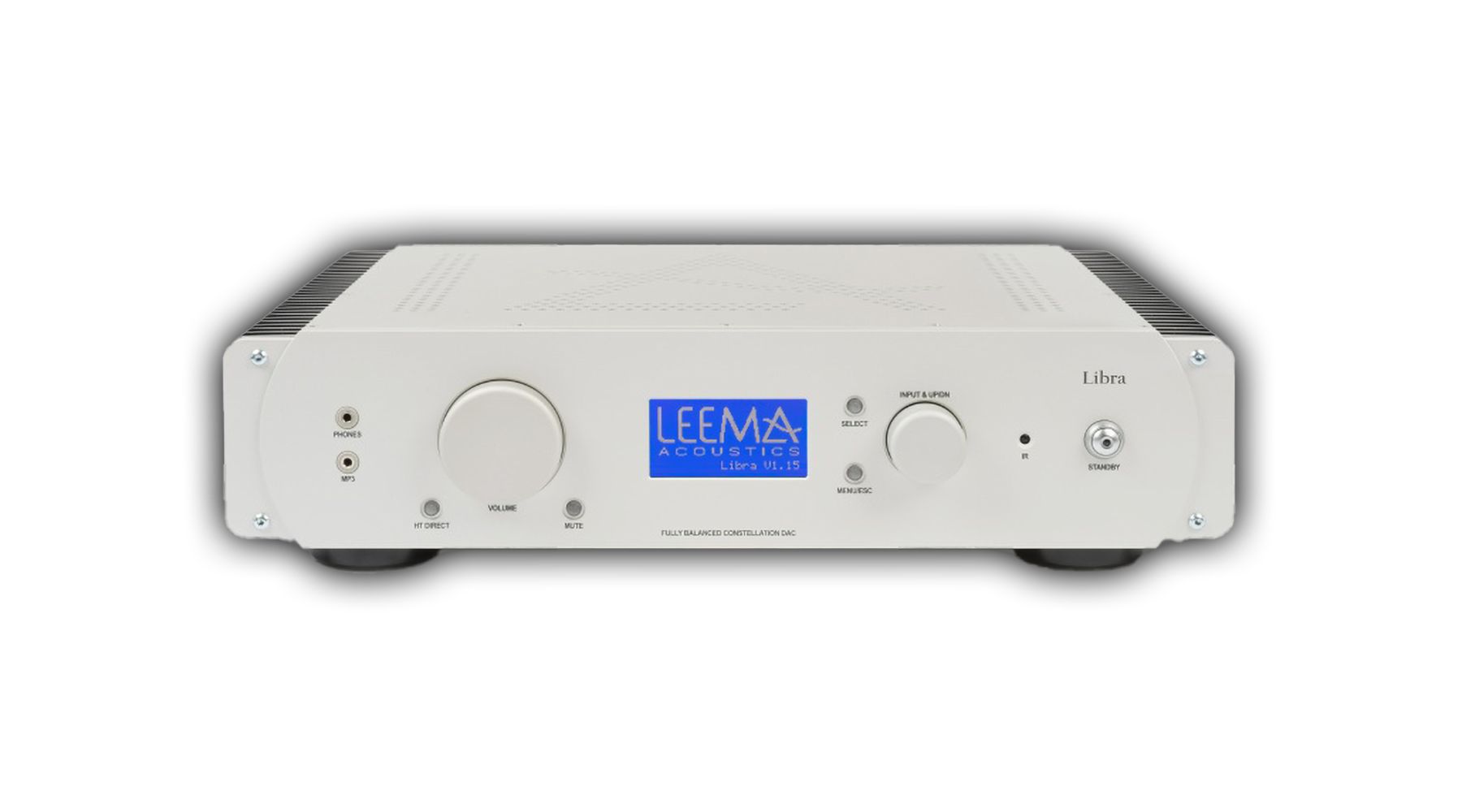

Libra DAC

Decades of professional studio expertise converge in the groundbreaking Leema Libra DAC, housed in precision-machined casework akin to the renowned Tucana and Antila.

Beneath its elegant exterior lies a wealth of cutting-edge technologies, plus an impressive array of input options including coaxial, optical, I2S, and AES/EBU connections, ensuring compatibility with various high-end sources. The class-leading M1 USB module delivers pristine computer audio playback with minimal jitter, while upgrades now support DSD64, DSD128, DXD, and 384kHz resolutions.

Featuring fully balanced Quattro Infinity dual-mono DAC modules, the Libra offers user-selectable output filter bandwidth and field-replaceable modules for future-proofing. With analogue inputs configurable for unbalanced or balanced connections and a Bluetooth interface for wireless playback convenience, the Libra exemplifies versatility.

It serves as both a high-end pre-amplifier with analogue volume control and a full LIPS controller, seamlessly integrating with Leema’s power amplifiers for unparalleled audio performance.

Specifications

DAC type
Leema Acoustics Quattro Infinity balanced multi DAC topology
Frequency response
1Hz to 100 kHz flat
Analogue inputs
X 3 configurable as Balanced (XLR) or Un-Balanced (RCA)
S/PDIF coaxial inputs
X 3 (24 bit 192kHz & DSD64)
S/PDIF optical inputs
X 3 (24 bit 192kHz & DSD64)
AES/EBU inputs
x 2 via XLR connectors (24 bit 192kHz & DSD64)
Asynchronous USB
Yes (24 bit 384kHz, DXD, DSD64 & DSD128)
Requirements
Content
USB isolation
Full Galvanic
I2S inputs

X 2 via RJ45 connectors (24 bit 384kHz, DXD, DSD64 & DSD128)

One I2S Input has fully programmable pin allocation

Headphone amplifier
Yes (high quality)
Bluetooth interface
Yes
Output (fixed or variable preamp)
1 x XLR true balanced, 1 x Single ended RCA
Dimensions
440*320*110mm
Weight
15kg

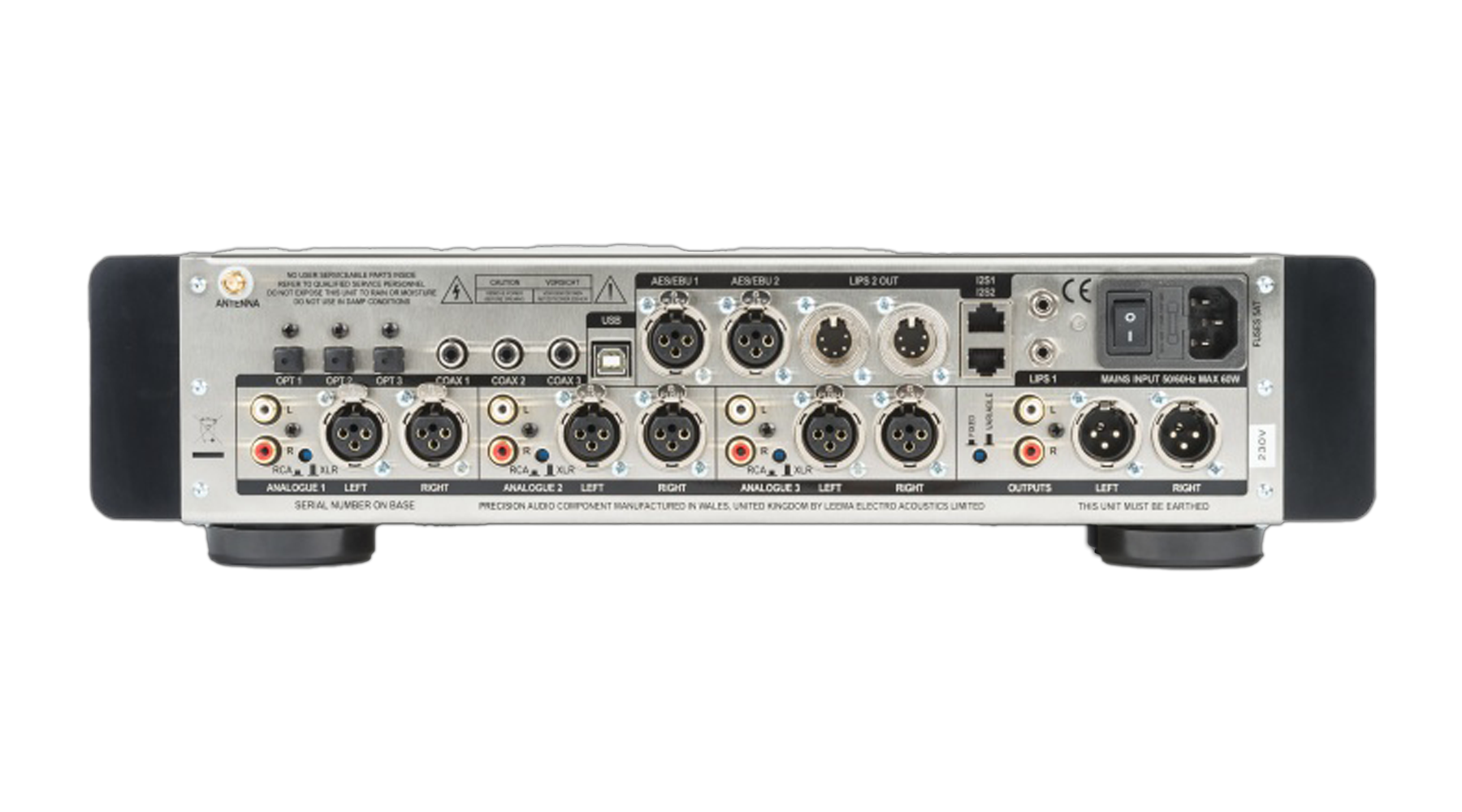

Libra DAC back of unit
